Elastic spherical indenter sliding on a block
1 Objective
Verify deformable-body, frictional, finite-sliding surface-to-surface contact. A hollow spherical indenter is first pressed into an elastic block and then translated across its upper surface. Normal force and maximum contact pressure are compared with the Hertz elastic solution, while tangential reaction is compared with the Coulomb sliding limit.
2 Geometry
The block occupies a \(5\times2\times3\) inch rectangular domain. The indenter is the bottom half of a hollow sphere, cut through its center by a plane parallel to the \(x\)-\(z\) plane. It has an \(R=0.5\) inch outer radius and a \(0.25\) inch inner radius. The geometry and initial position are shown in Figure 1. Its initial center is at \((-1.5,1.525,0)\), leaving a \(0.025\) inch gap above the block’s top surface at \(y=1\).
| Quantity | Symbol | Value (in) |
|---|---|---|
| Block dimensions | \(L_x\times L_y\times L_z\) | \(5\times2\times3\) |
| Indenter outer radius | \(R\) | 0.5 |
| Indenter inner radius | \(R_i\) | 0.25 |
| Initial clearance | \(g_0\) | 0.025 |
3 Material
Both bodies use geometrically non-linear isotropic, small-strain linear elasticity. The material model is intentionally kept elastic even though the analytical contact pressure is far above the yield stress of ordinary steel; this study is a mathematical verification of the elastic contact implementation rather than a physical steel-indentation experiment.
| Body | Young’s modulus (psi) | Poisson’s ratio |
|---|---|---|
| Block | \(2.9e+07\) | 0.3 |
| Indenter | \(3e+07\) | 0.29 |
4 Loading & boundary conditions
The lower face of the block is pinned. During \(0\le t\le0.1\), the upper planar face of the indenter receives a prescribed vertical displacement of \(-0.125\) in. During \(0.1\le t\le1\), that displacement is held while the face translates \(4.25\) in in the positive \(x\) direction. The contact pair uses finite sliding, surface-to-surface enforcement, and isotropic penalty Coulomb friction with \(\mu=0.3\) and an elastic-slip fraction of \(0.005\) [1].
5 Mesh & discretization
The mesh study contains native Abaqus and Coreform IGA cases at refinement levels \(h_0=0.5\) in, \(h_1=0.25\) in, and \(h_2=0.125\) in. The Abaqus results use C3D8R elements. The Coreform IGA results use quadratic elements with \(C^1\) continuity.
The predicted Hertz contact diameter at full indentation is approximately \(0.447\) in. It is slightly smaller than the \(h_0\) mesh size, while \(h_1\) and \(h_2\) progressively resolve the patch. This makes maximum pressure a more demanding refinement quantity than the integrated reaction forces.

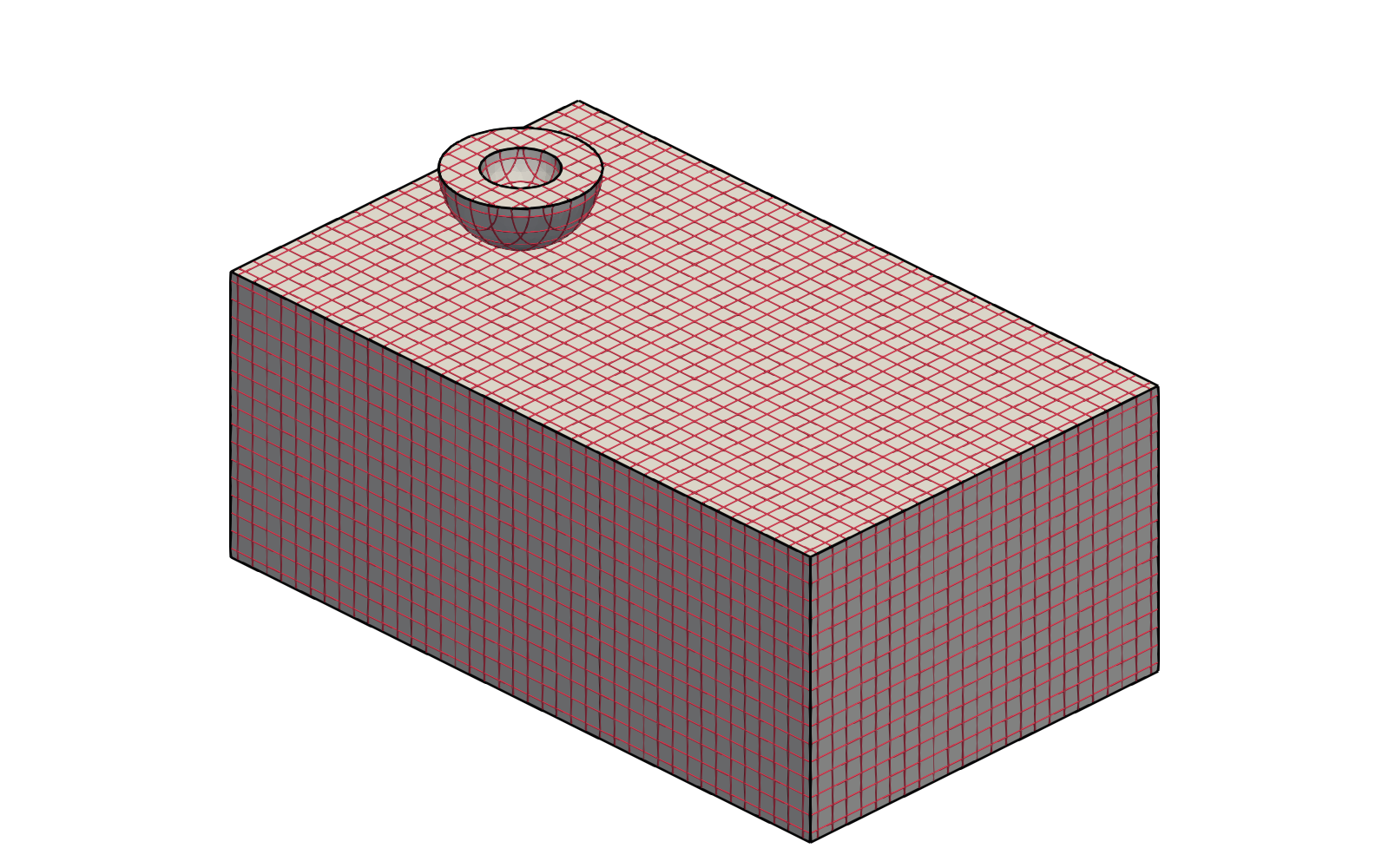

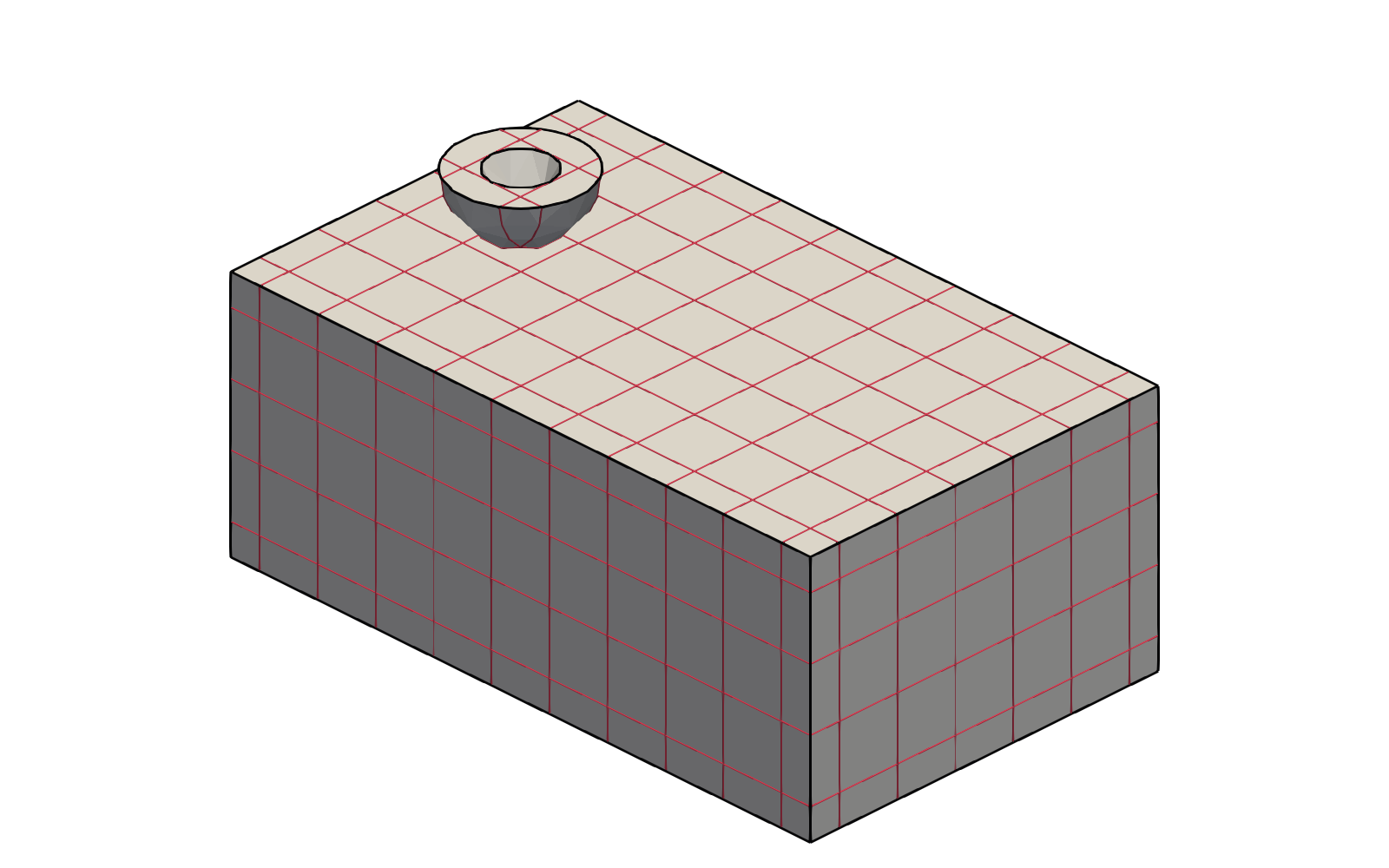

The tabs below show the Coreform IGA discretizations at each refinement level. Trimmed Bézier element edges are shown in carnation and CAD edges in black.
6 Reference & accepted solutions
For a spherical surface contacting an elastic half-space, the Hertz solution uses the reduced modulus [2], [3]
\[ \frac{1}{E^*} =\frac{1-\nu_b^2}{E_b}+\frac{1-\nu_i^2}{E_i}. \]
With indentation \(\delta\), sphere radius \(R\), and contact radius \(a\), the accepted normal quantities are
\[ a=\sqrt{R\delta},\qquad F_N=\frac{4}{3}E^*\sqrt{R}\,\delta^{3/2},\qquad p_0=\frac{2E^*}{\pi}\sqrt{\frac{\delta}{R}}, \]
where \(a\) is the contact radius, \(F_N\) is the normal force, and \(p_0\) is the maximum pressure. The initial clearance is subtracted from the imposed motion, giving
\[ \delta(t)=\max(1.25t-0.025,0),\quad 0\le t\le0.1, \]
and \(\delta=0.1\) in. thereafter while the contact patch remains on the planar top surface. During gross sliding the tangential reference is \(F_T=\mu F_N\). The sliding comparison uses \(0.15\le t\le0.70\); later motion approaches the finite block edge and is outside the half-space solution.
| Quantity | Accepted value |
|---|---|
| Reduced modulus \(E^*\) | \(1.615266e+07\) psi |
| Full indentation \(\delta\) | 0.1 in |
| Contact radius \(a\) | 0.223607 in |
| Normal force \(F_N\) | \(481579.3\) lbf |
| Gross-sliding force \(F_T\) | \(144473.8\) lbf |
| Maximum pressure \(p_0\) | \(4598743\) psi |
7 Results
7.1 Quantities of interest
The test enforces pointwise relative errors at the end of indentation and relative RMS errors over the gross-sliding comparison window where RMS denotes root mean square. For computed samples \(q_i\) and corresponding analytical values \(q_i^*\), the relative RMS error reported here is
\[ e_{\mathrm{RMS}} =\frac{\sqrt{\sum_{i=1}^{N}(q_i-q_i^*)^2}} {\sqrt{\sum_{i=1}^{N}(q_i^*)^2}}. \]
The sums include every output frame in the gross-sliding comparison window, \(0.15\le t\le0.70\).
| Quantity | Abaqus relative error | Coreform IGA relative error |
|---|---|---|
| Normal force at \(t=0.1\) | \(39.1\%\) | \(1.34\%\) |
| Maximum pressure at \(t=0.1\) | \(66.7\%\) | \(8.46\%\) |
| Sliding normal force RMS | \(27.1\%\) | \(5.04\%\) |
| Sliding tangential force RMS | \(36.6\%\) | \(4.04\%\) |
| Sliding maximum pressure RMS | \(47\%\) | \(7.06\%\) |
| Quantity | Abaqus relative error | Coreform IGA relative error |
|---|---|---|
| Normal force at \(t=0.1\) | \(3.25\%\) | \(3.45\%\) |
| Maximum pressure at \(t=0.1\) | \(24.3\%\) | \(20.1\%\) |
| Sliding normal force RMS | \(0.6\%\) | \(1.58\%\) |
| Sliding tangential force RMS | \(5.96\%\) | \(2.04\%\) |
| Sliding maximum pressure RMS | \(25.3\%\) | \(17\%\) |
| Quantity | Abaqus relative error | Coreform IGA relative error |
|---|---|---|
| Normal force at \(t=0.1\) | \(1.07\%\) | \(3.33\%\) |
| Maximum pressure at \(t=0.1\) | \(13.4\%\) | \(8.07\%\) |
| Sliding normal force RMS | \(0.376\%\) | \(1.14\%\) |
| Sliding tangential force RMS | \(1.57\%\) | \(0.604\%\) |
| Sliding maximum pressure RMS | \(15.4\%\) | \(3.68\%\) |
7.2 Reaction forces
7.3 Contact pressure
7.4 Maximum principal stress countour plots

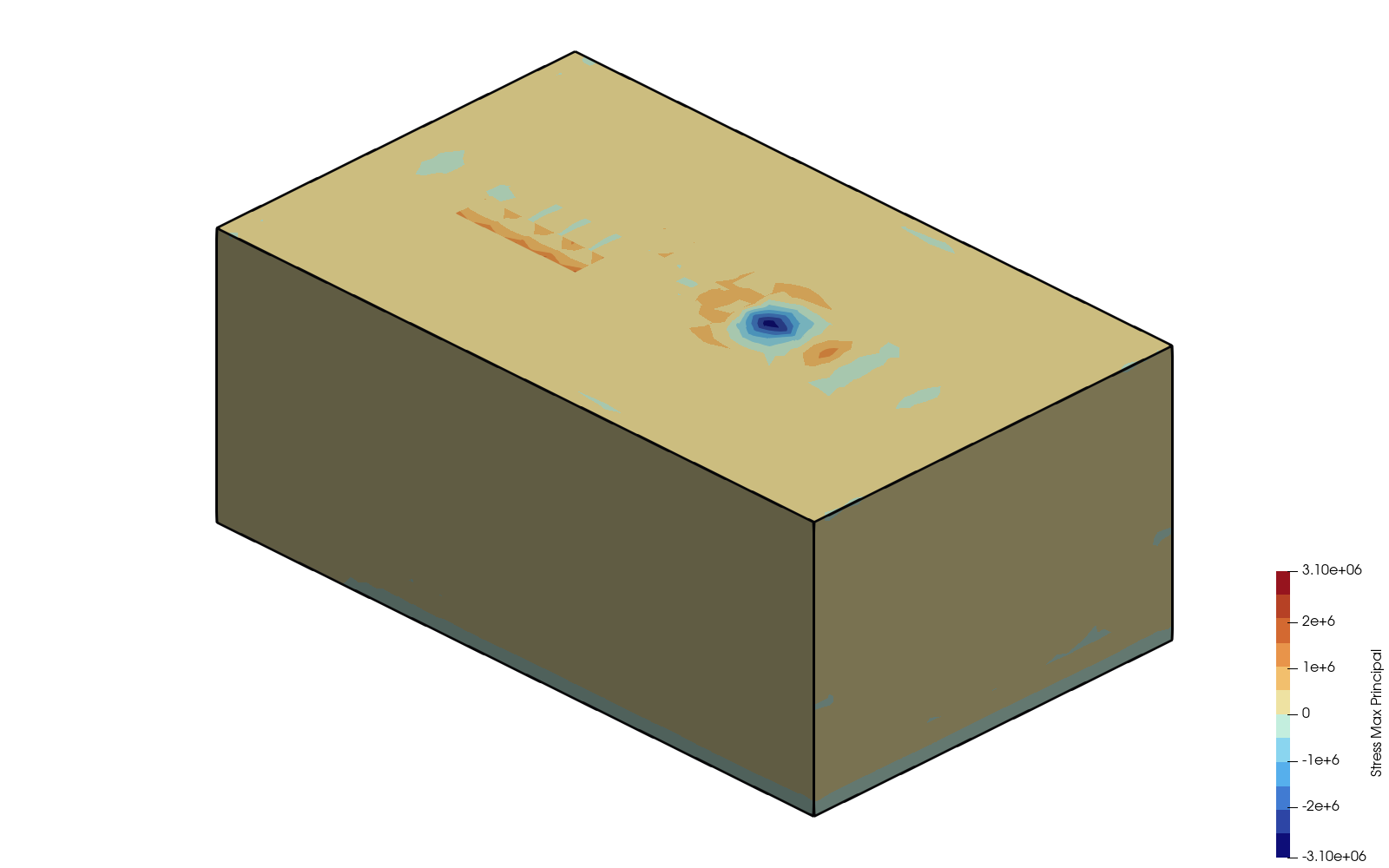

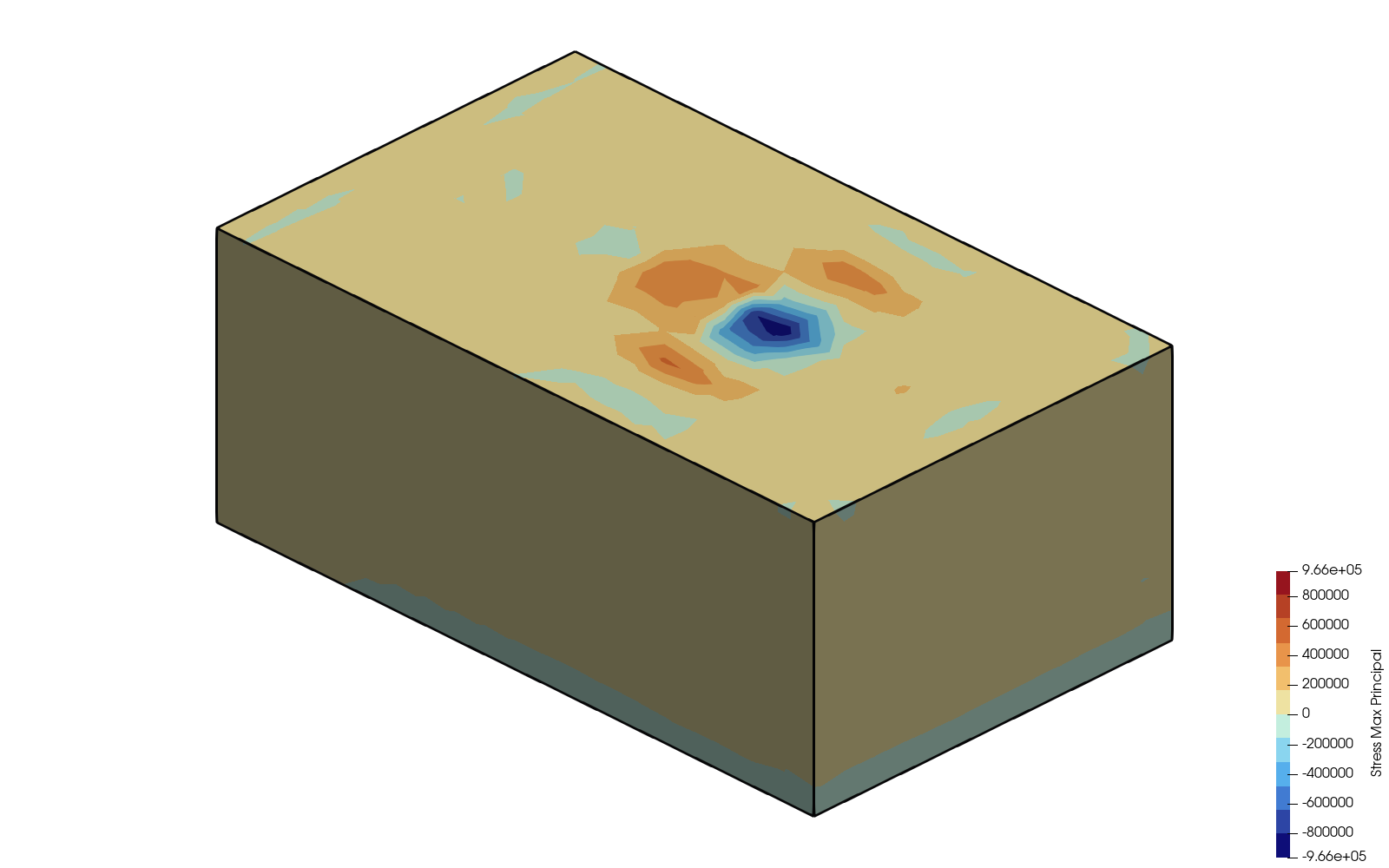

The maximum principal stress is shown on the elastic block at \(t=0.55\), during steady sliding. The indenter is omitted to expose the stress field on the block’s contact surface.
8 Discussion
The Hertz-Coulomb reference captures both stages of the solution: nonlinear \(F_N\propto\delta^{3/2}\) indentation followed by an approximately constant normal force and a friction force near \(\mu F_N\) during translation over the flat surface. The maximum contact pressure result is more sensitive to spatial resolution than the integrated reaction forces because the coarsest mesh does not resolve the contact diameter. The final portion of the simulation is retained as a finite-sliding contact exercise, but it is not used for analytical verification after the contact patch begins interacting with the block edge.
References
